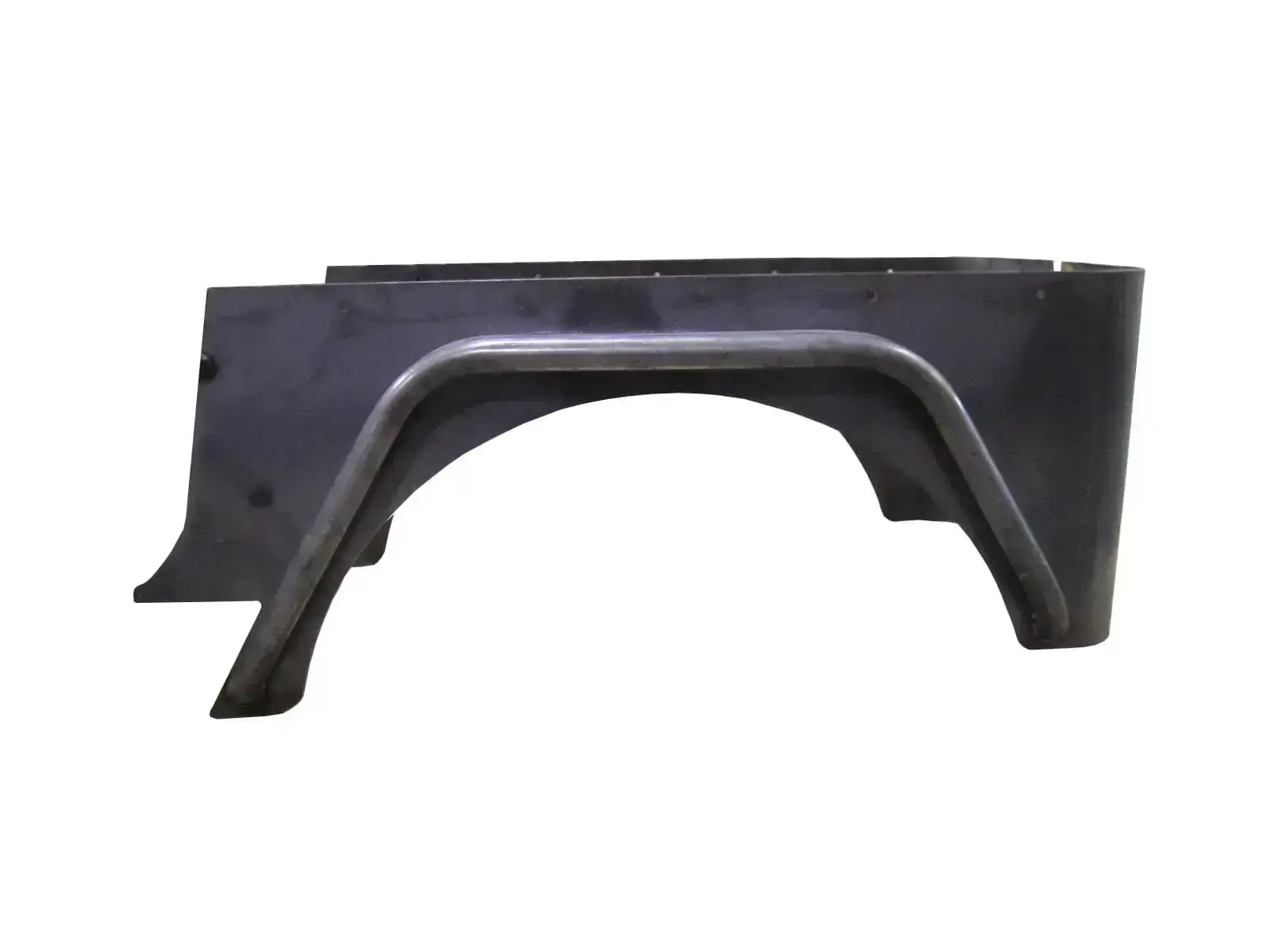

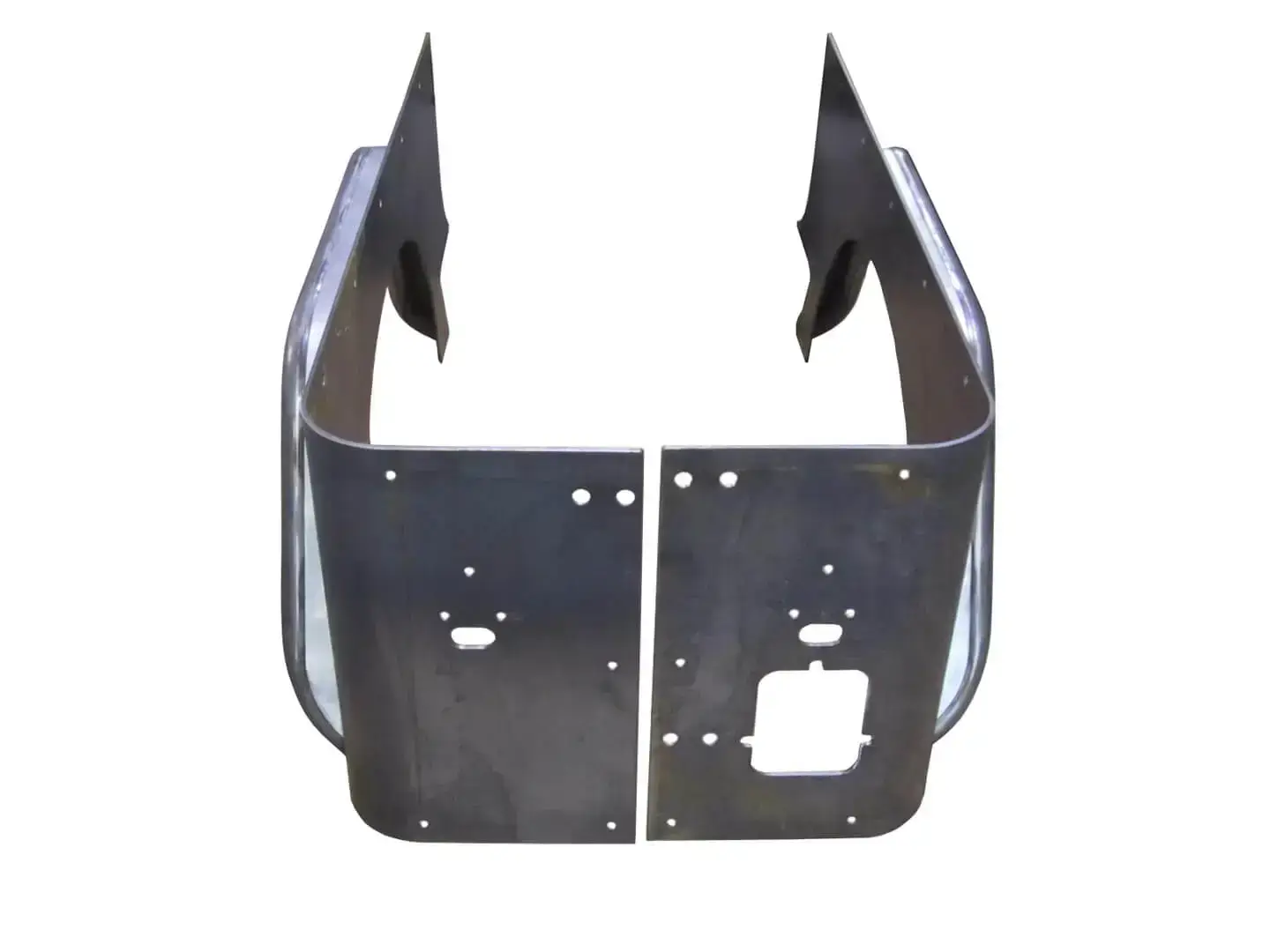

Corner Guards with 4.5 Inch Flare for Jeep CJ-7




Protect the side of your Jeep CJ-7 with TNT Customs 3/16 inch steel full length corner armor with 4.5 inch tubular flare!  Our 4.5 inch flares are welded to the corner blanks for superior strength.  No need to worry about light duty, bolt-on flares ripping off on the trail.  Welding the flares ensures they are just as strong as the rest of our body armor – ready to take whatever the trail dishes out.

TNT corners bolt onto your Jeep CJ through 11 pre-punched mounting holes per side, using 3/8 inch stainless steel button head fasteners, giving a clean and functional look.  Taillight mounting holes are pre cut for OEM tail lights,


  • Fits 1976 to 1986 Jeep CJ-7
  • The radius is pressed in a singular motion with precision dies, for superior fit
  • Protects the Jeep’s body from door opening to tailgate opening
  • Weld-on flare provides 4.5 inches of wheel coverage
  • Fabricated from 3/16 inch steel plate, the same as our rock sliders
  • Our corner guards are pre-punched for 3/8 inch stainless steel button head fasteners – 11 bolts per side
  • Wheel well cutout follows the tub pinch seam
  • Made in the USA


  • Corners are cut and assembled to order, and may take up to 15 to 20 business days before shipping

Additional information

Weight 64 lbs
Dimensions 52 × 24 × 20 in
